FABRICATION FACILITIES

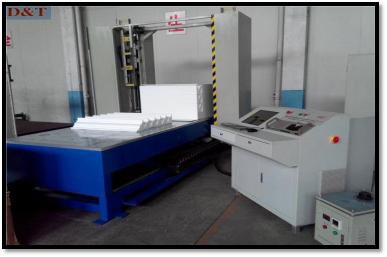

CNC Multi Independent Axis Profile Shaper

CNC Independent axis multi hot wire equipment are intended for high production and to produce objects like tapered cuts and profiles. Independent wire axis mode cutting capability makes both end of the wires move independently. This exclusive mode added with the numerous adaptable options make the profile 3D & 4 D Fabrication versatile.



green products

Arches, Profiles, Columns, Sidings and all types of Mouldings

green products green products
green products green products

CNC Cold Wire High Speed Contour Shaper

CNC are computer controlled machine with work principle based on endless running of abrasive wire which is sped up to 300 km/h to perform the perfect cut. Various cutting wires are available for different materials to obtain the optimal quality and performance. Mostly used for Insulation Industry to manufacture Pre-fab Pipe and fittings insulation.

green products


Polyiso & Polyurethane foams

Polyiso & polyurethane foams have unique properties like high strength to work ratio, low thermal conductivity, low water vapour transmission and buoyancy.

green products green products
green products green products

RIM Insulated wall panel Equipment

Reaction Injection Molding (RIM) produces panels that are dimensionally stable, chemically resistant, physically tough, and wear resistant. This process is an excellent choice for Polyurethane and polyisocyanurate composite wall panels .The process takes its name from a chemical reaction that occurs within the mold tool. The plastics used are two components that produce the polyisocyanurate are mixed just prior to injection into the tool. With the low viscosity and low injection pressures, large, complex panels can be produced economically

green products


Insulated wall & Ceiling Panel Laminator

Our various series of wall and roof panels are filled with non-CFC polyisocyanurate foam. The panels are manufactured in a uniform pressure laminating process that bonds composite board facings to precured insulating rigid foam cores. The process uses structural urethane adhesives applied under heat and pressure to form an integral bond between boards and foam. Cores are inspected at the factory for uniform density and cell structure, and then are cut by a laser guided saw to exact tolerances. This extra care ensures premium quality flat cores, suitable for use with embossed or smooth facings.

The smart wall insulated panels are ideal for projects with a focus on energy efficiency and speed of construction. It can be easily fixed on wall and ceilings.

green productsgreen products


CNC 3D Router for Insulated wall

Our CNC 3 D router can create Interior and exterior decorations, wall panels cladding , moldings ,as per customer request CNC router helps in the thermoforming of plastics by automating the trimming process. We can create design on Natural Tiles and Stones , Marbles etc. For External, use we provide Insulted panel with design as per request.

green productsgreen productsgreen products

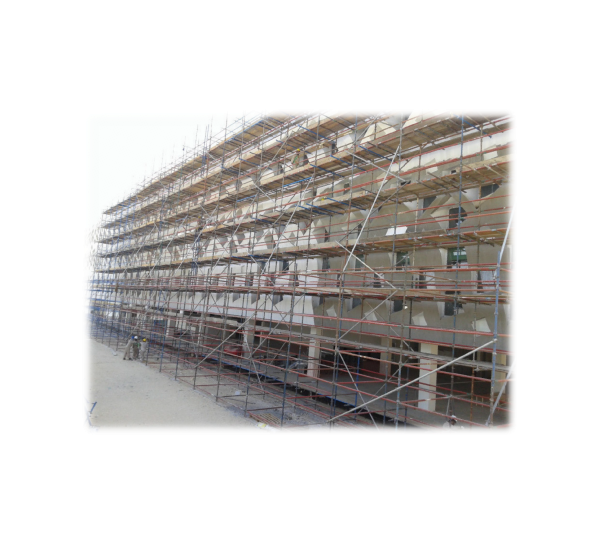

3D and 4D FAƇADE FACBRICATION and INSTALLATION

green productsgreen productsgreen productsgreen products
